SPECIFICATIONS

Engraving Size: 395 x 385mm (15.55" x 15.16")

Engravable/Cuttable Materials:

Engravable Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and lacquer-coated metals, 304 mirror stainless steel, glass, ceramic, cotton fabric, slate.

Cuttable Materials: Cardboard, non-woven fabric, wood board, acrylic, certain thin plastic sheets, sponge.

Total Power: 210W

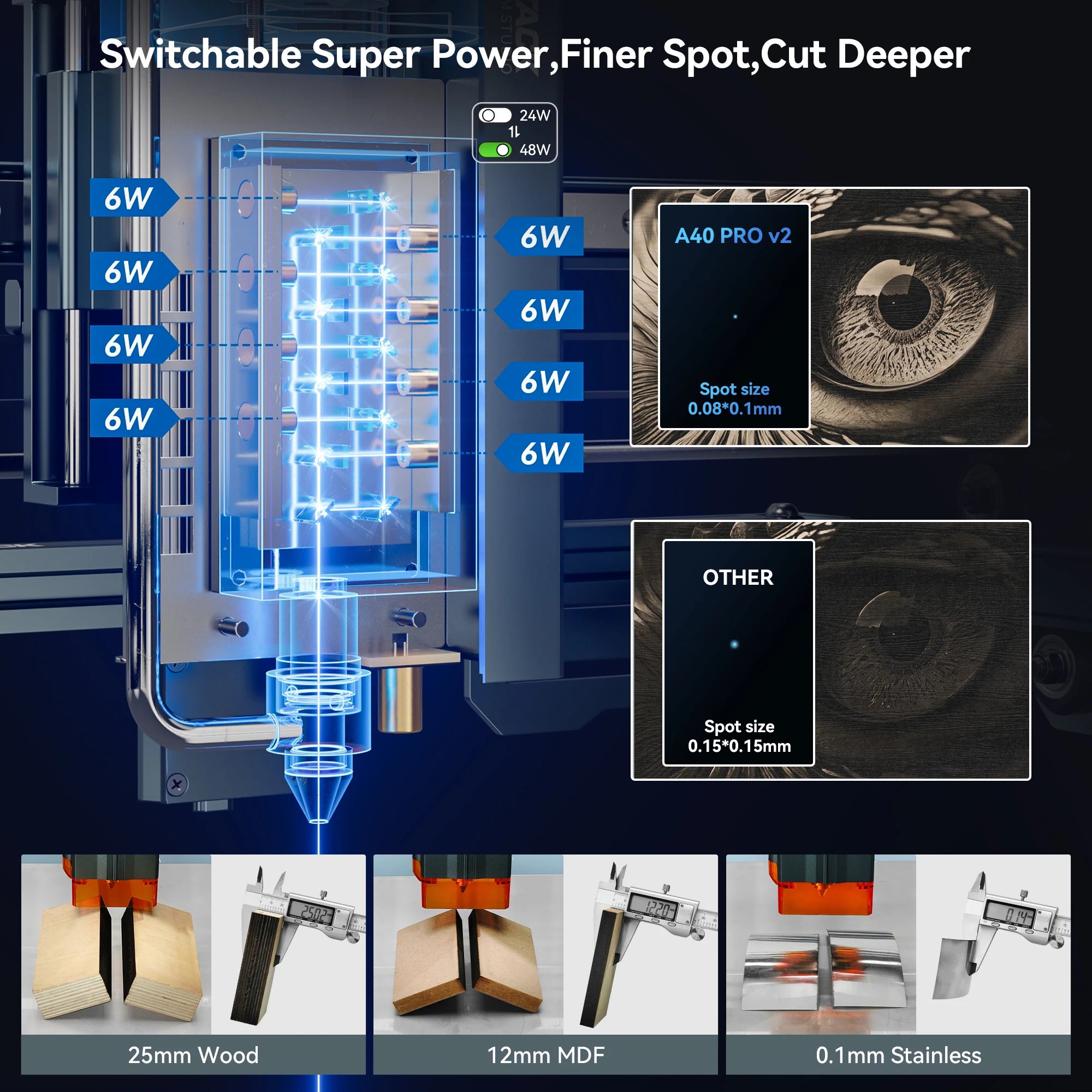

Laser Power: 180W (in cutting mode)
Laser Output Power: 40-48W
Laser Wavelength: 455±5nm

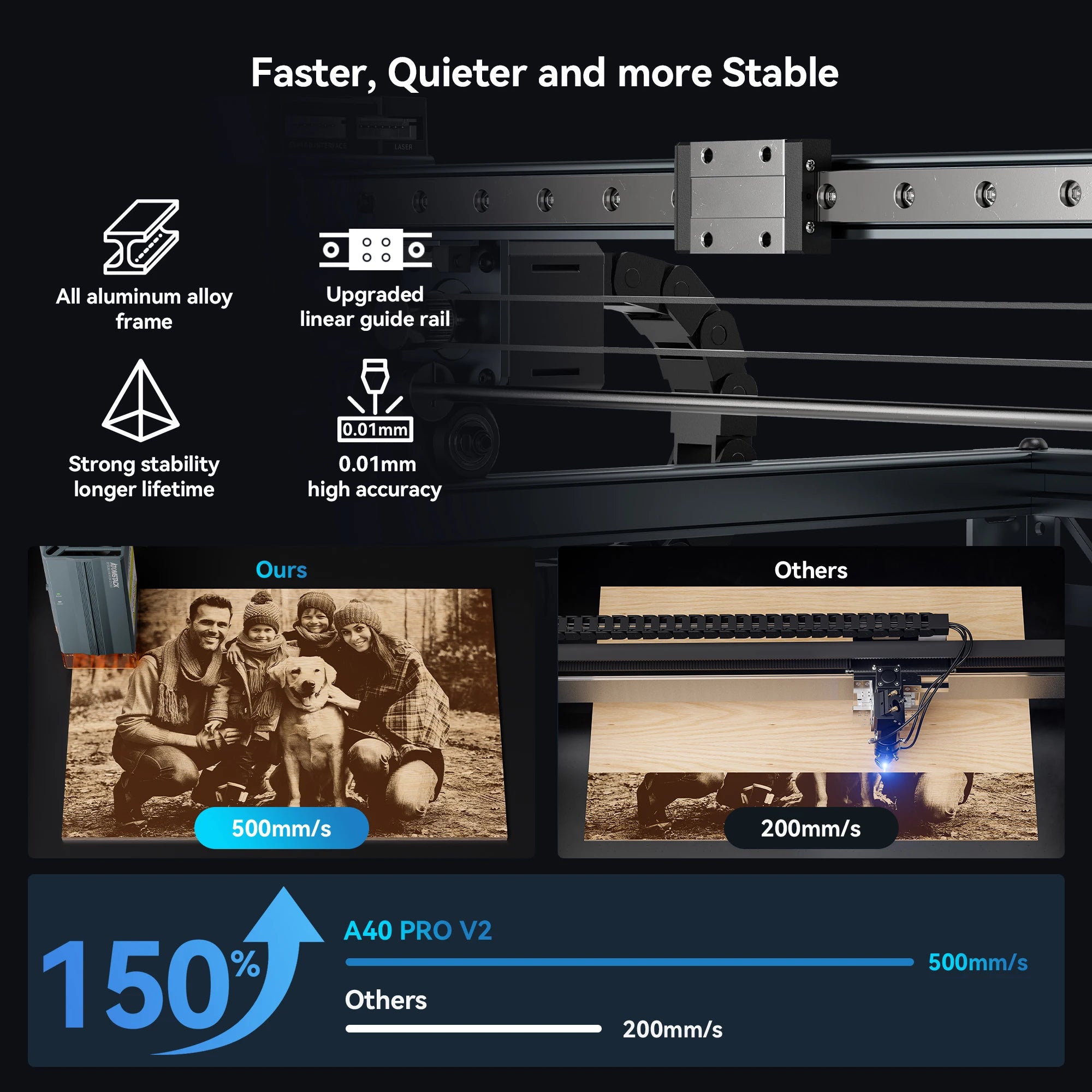

Engraving Precision: 0.01mm

Focusing Method: Fixed-focus laser, no need for manual focusing

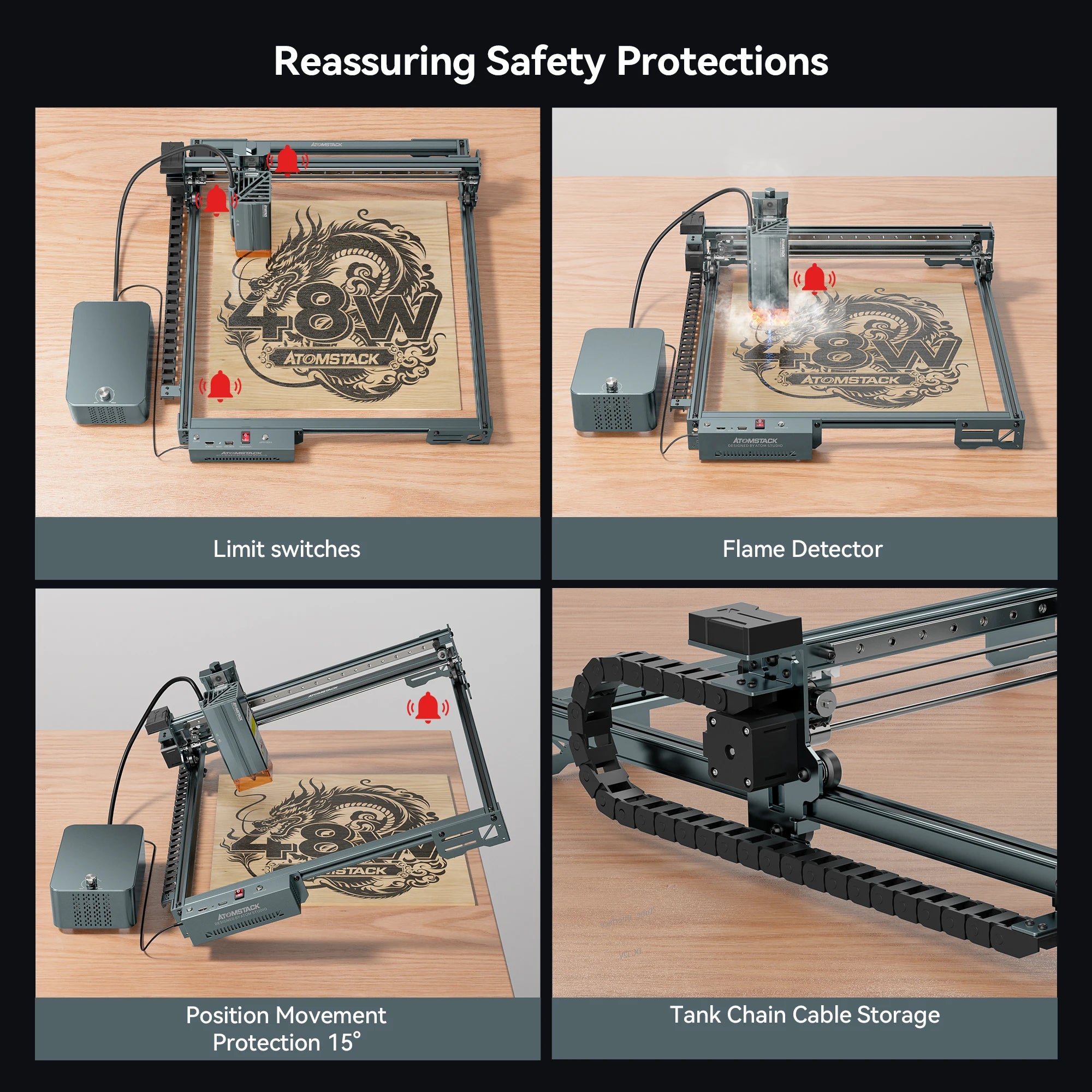

Limit Switches: 2 (1 on X-axis, 1 on Y-axis)

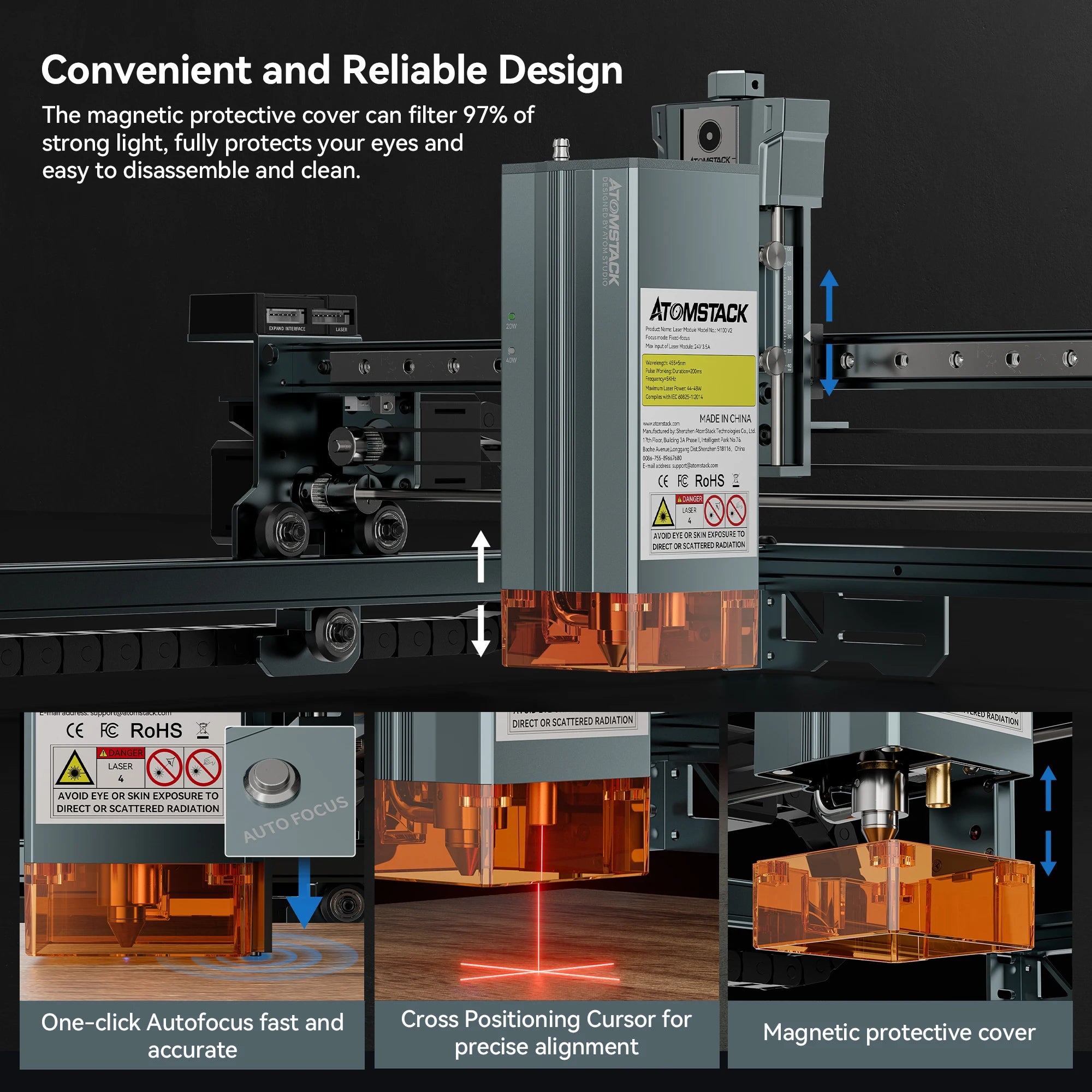

Laser Protection Shield: The laser has a protective shield that safeguards the user's eyes, eliminating the need for additional safety glasses. It also prevents pets from interacting with the laser spot.

Operating Software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10

Supported File Formats: NC, BMP, JPG, PNG, DXF

Data Transmission Method: USB connection

Power Supply: Universal standard power input: 100-240V AC, 50/60HZ, Output: 24V 9A

Certifications: CE,, RoHS,, PSE
