SPECIFICATIONS

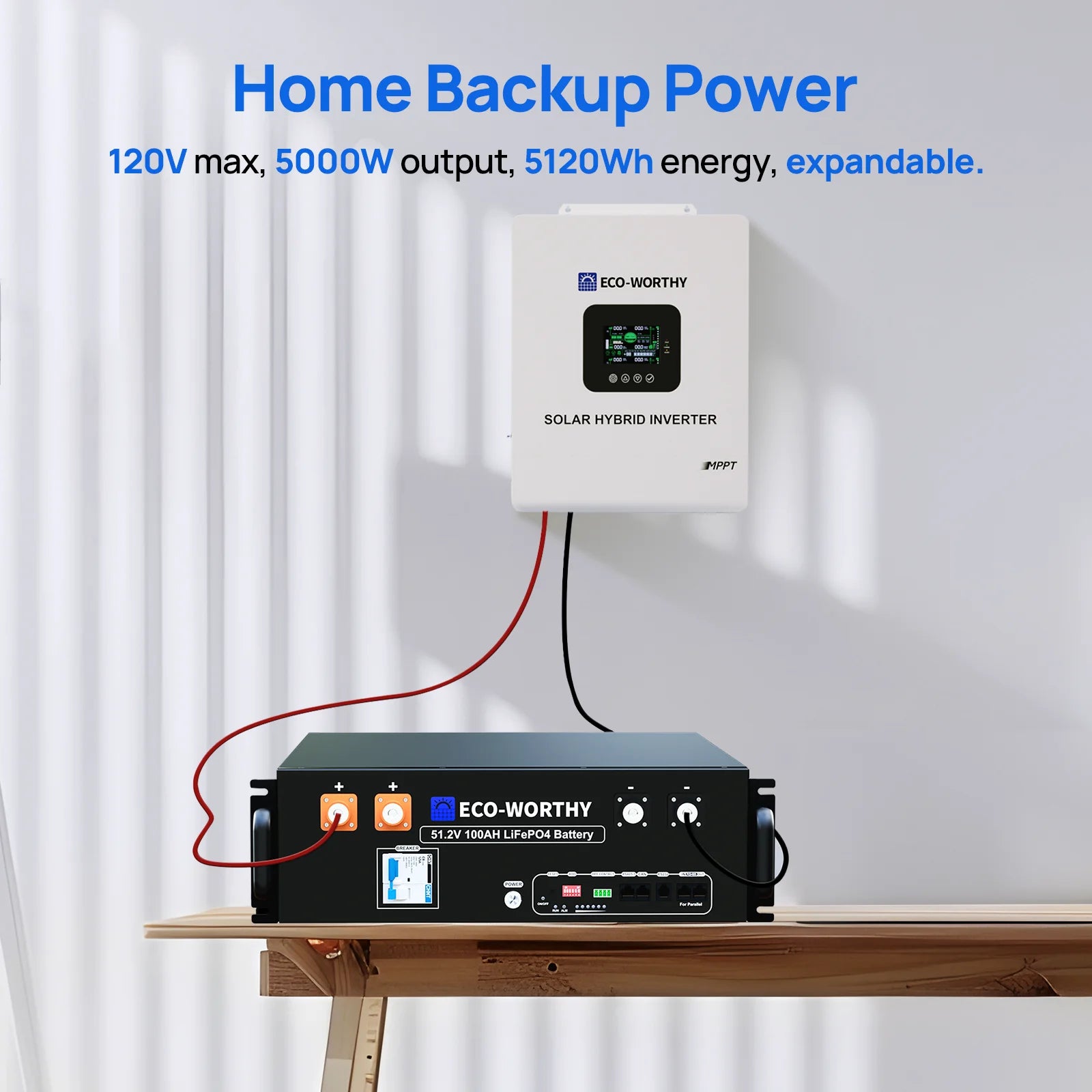

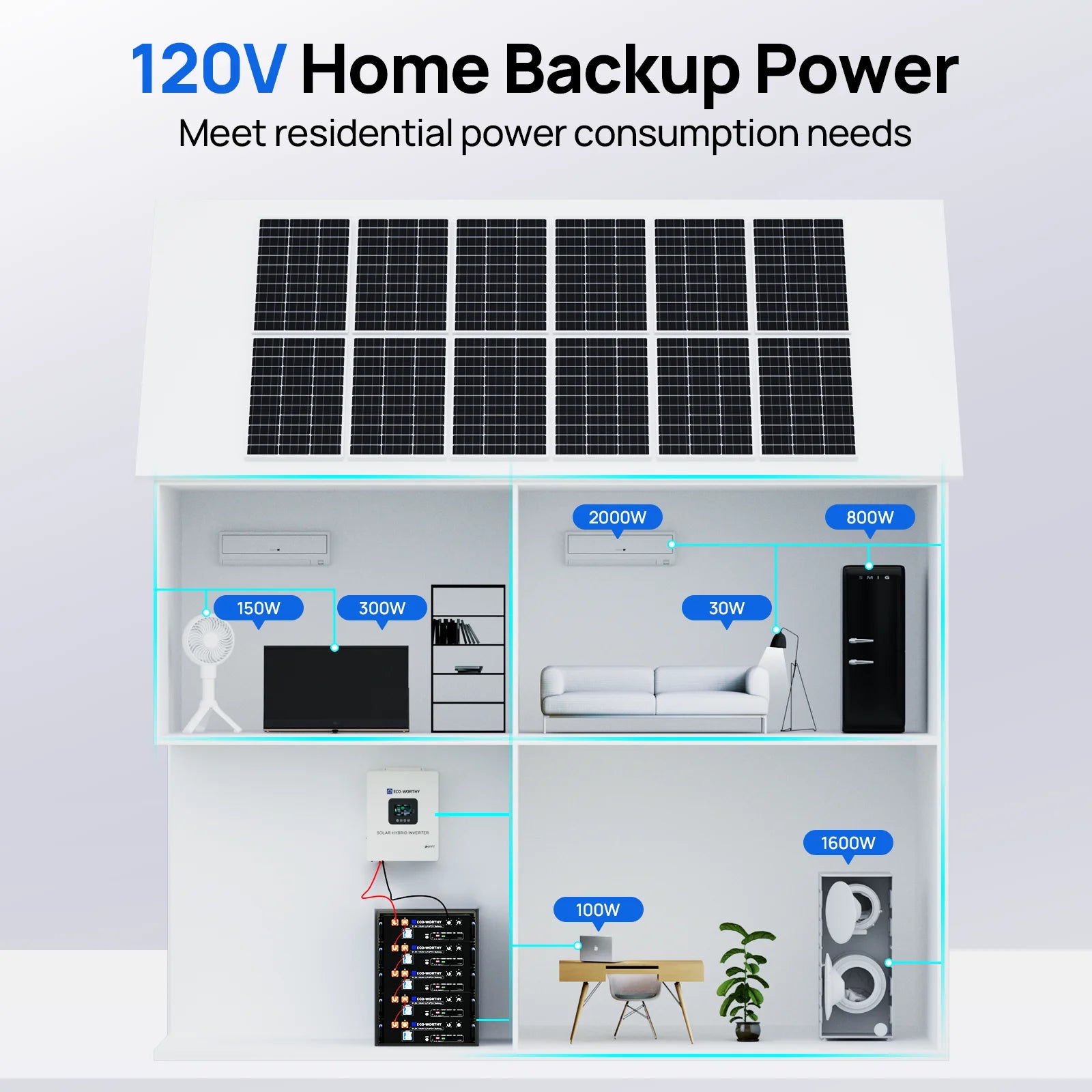

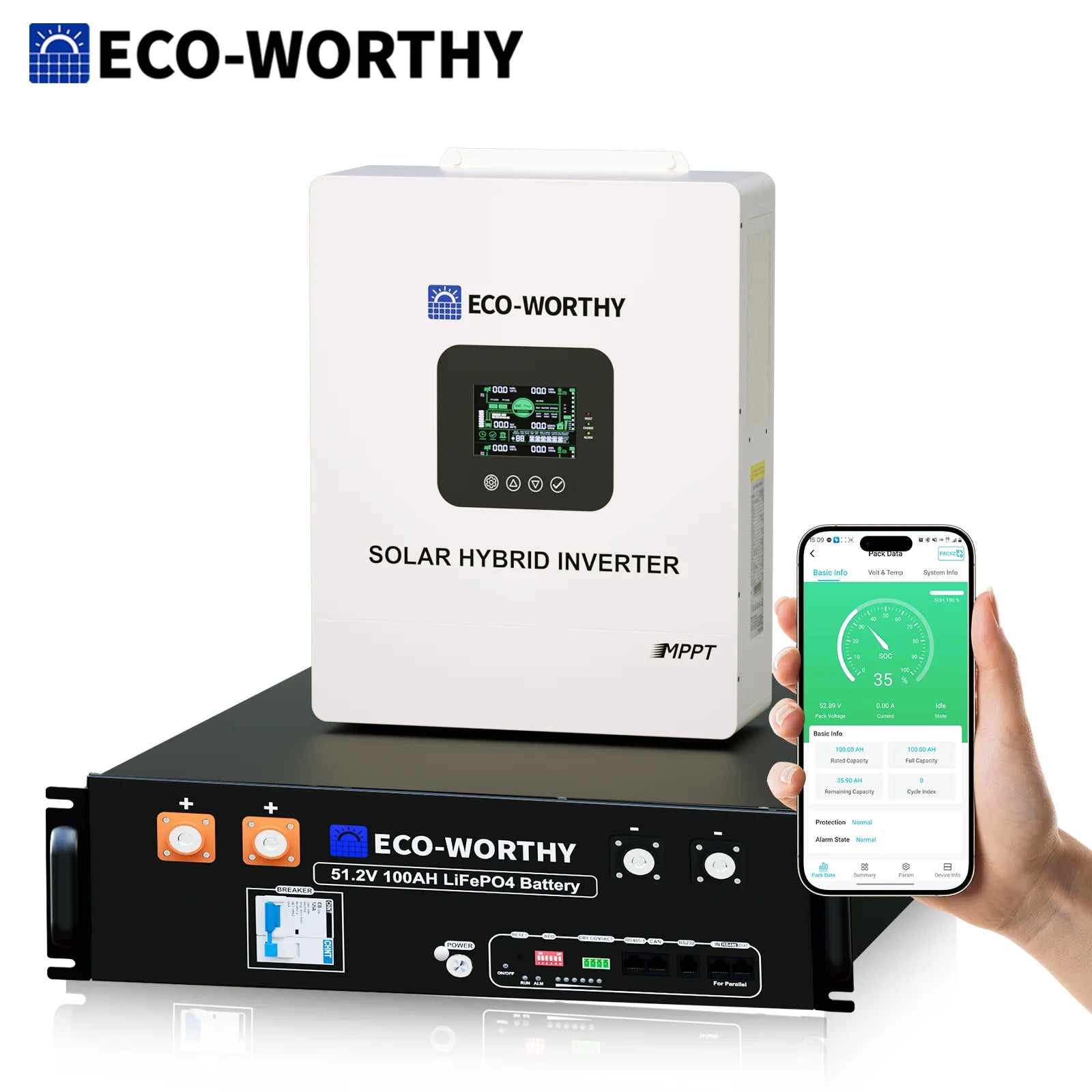

The setup includes an off-grid inverter and one battery. One inverter supports 120V and has an outstanding 5000W output, allowing you to run almost any heavy - duty household appliance. For more power, up to 6 off-grid inverters can be paralleled to unlock 30kW of AC output. The batteries can be paralleled with up to 15 batteries to expand the capacity, unlocking 76.8KWh of storage.

Amp Hours: 100Ah

Application: Home,Solar/Wind Devices, RV Battery, On/Off Grid Solar System

Battery Size: 51.2V

Certification: UL

Charge Over-Current Protection: 200±30A

Charging Temperature: 32~131℉/0~55 ℃

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

End of charge voltage: 58.4V

Energy: 5120Wh

High-concerned chemical: None

Load Power (W): 5000w

Maximum continuous charge: 100±5A

Maximum continuous discharge: 100±5A

Maximum operational current: 1C

Maximum operational voltage: 58.4V

Nominal Voltage: 51.2V

Output Voltage (V): 48V

Power Source: Solar

Rated Capacity: 100Ah

Short circuit protection: Yes

Specification: Normal

Standard charge: 25±1A

System Configuration: Off-Grid

Temperature Protection: Yes

Type: Solar Energy Systems (including batteries),Lithium Battery

Voltage: 48 V

Weight: 94.8 Ibs

Work Time (h): 24h
