SPECIFICATIONS

Amp Hours: 100Ah

Application: RV,High Drain Devices, Solar/Wind Devices, RV Battery, On/Off Grid Solar System

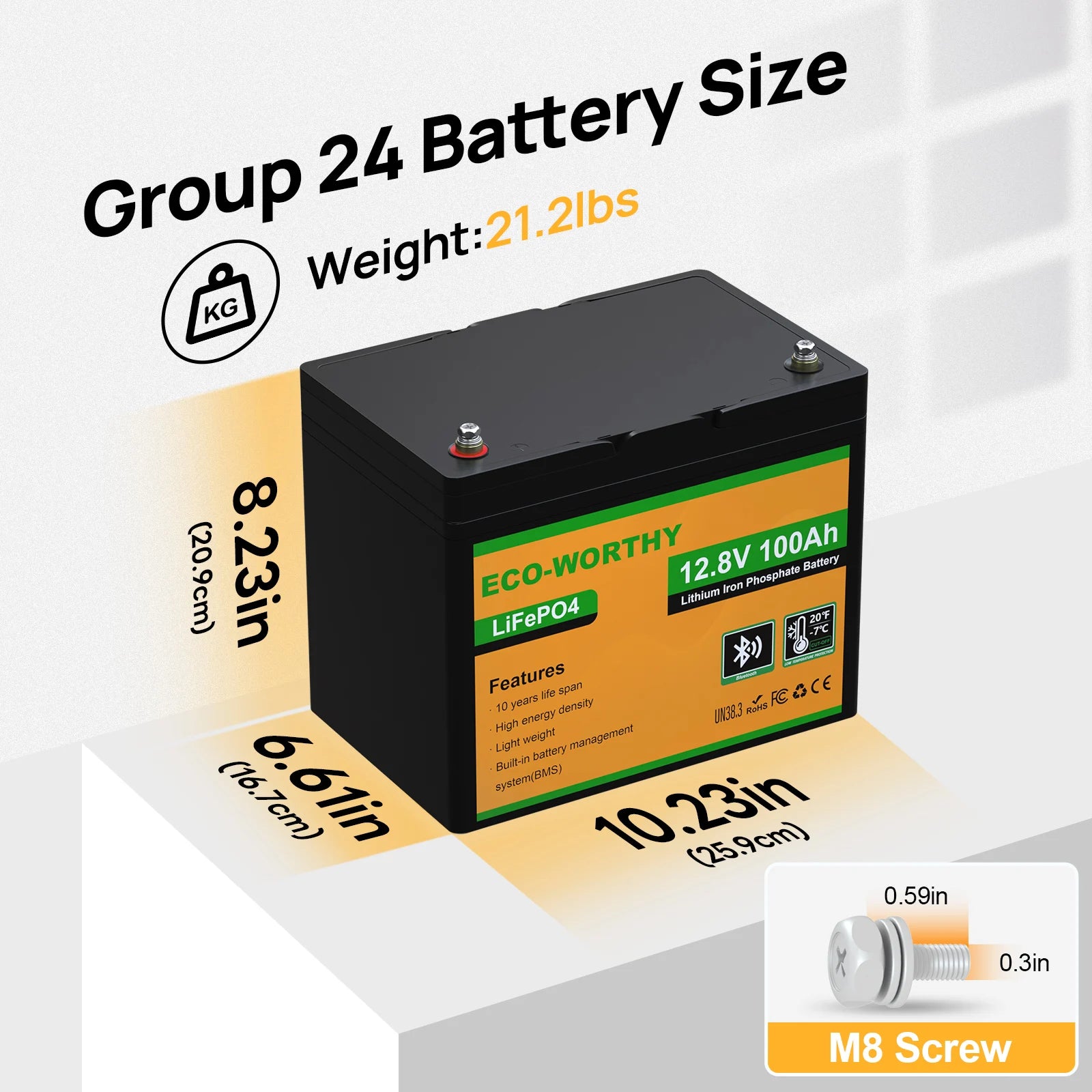

Cell Dimension: 10.23 x 6.61 x 8.23inches

Charging Mode: CC CV

Charging Temperature: 32~131℉/0~55 ℃

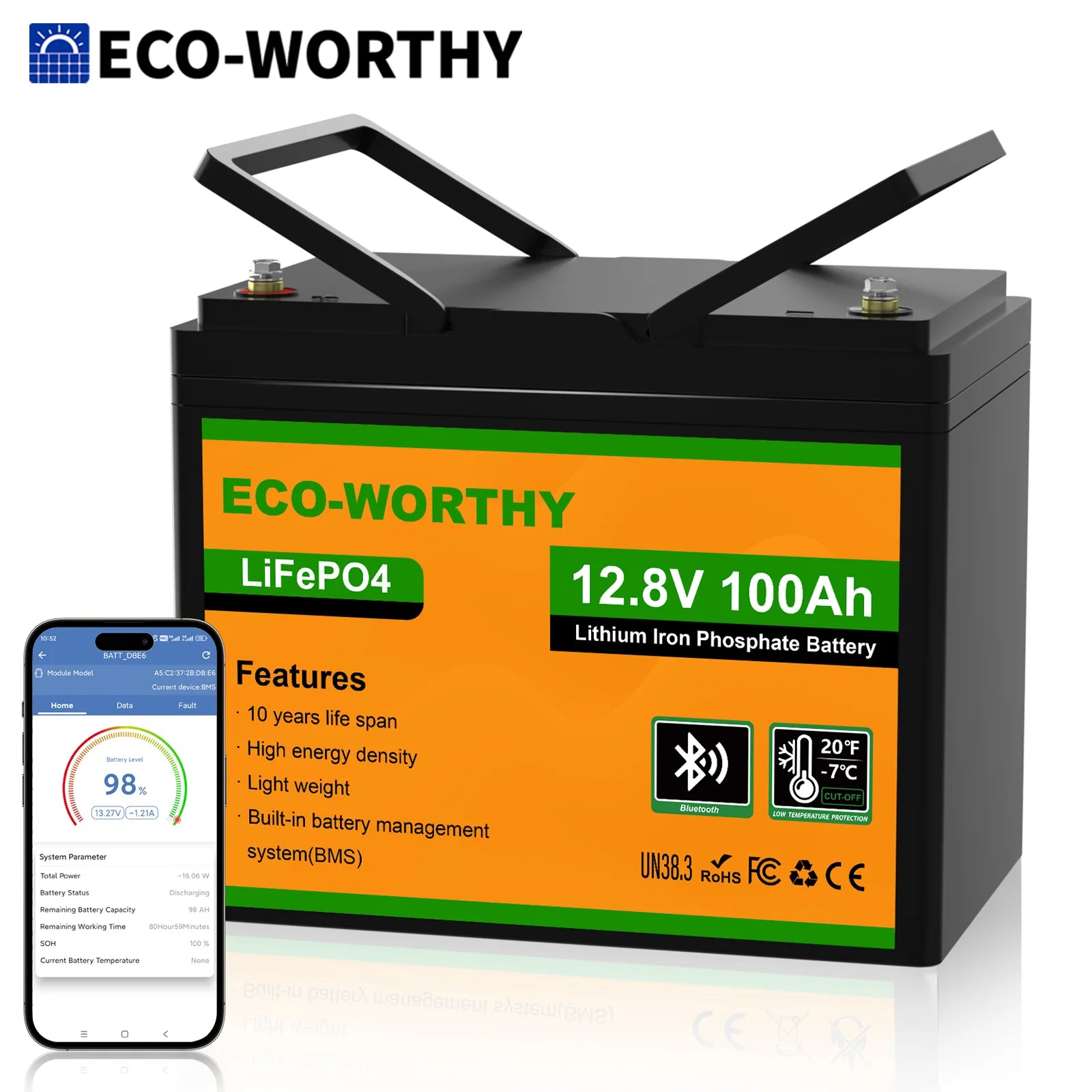

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

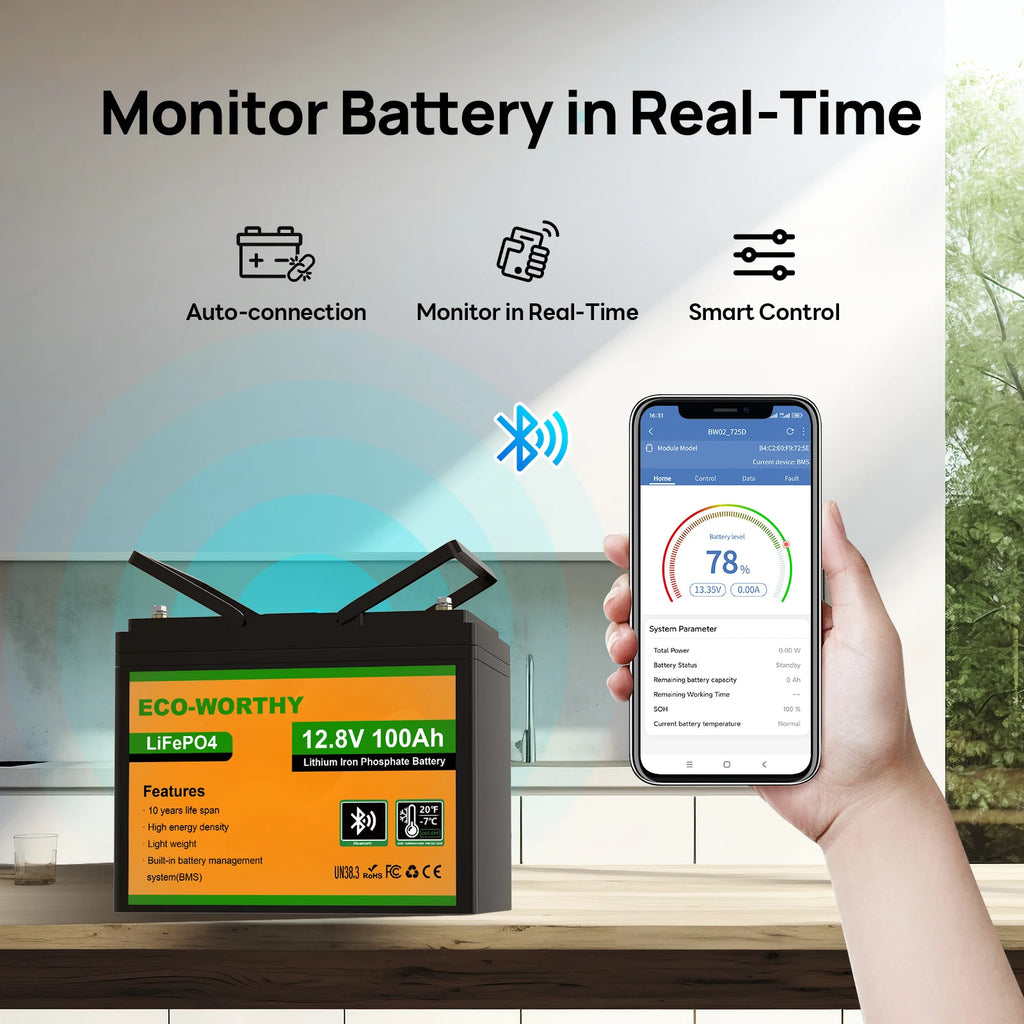

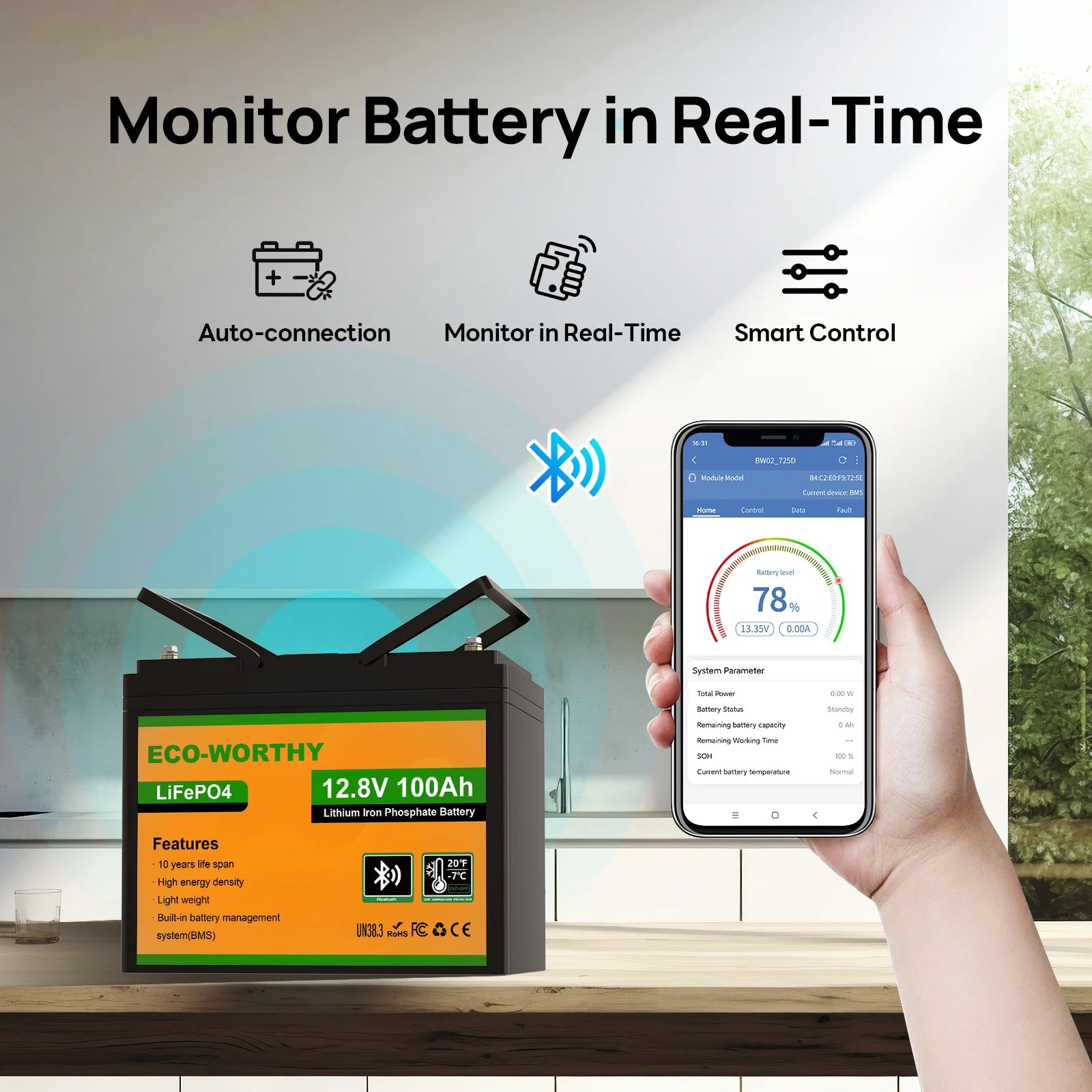

Connection: Bluetooth-Compatible

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

Energy: 1280Wh

Low temperature protection: Yes

Maximum Input Voltage: 12.8V

Maximum continuous charge: 100A

Maximum continuous discharge: 100A

Maximum operational current: 1C

Maximum operational voltage: 14.6V

Model Number: 1100700112

Nominal Capacity: 100AH

Nominal Voltage: 12.8V

Number of series and parallel connection: 4P4S

Power Source: Solar

Rated Capacity: 100Ah

Rated Voltage: 12V

Short circuit protection: Yes

Size: 26*16.8*21.4 cm

Standard charge: 50A

Standard discharge: 50A

Temperature Protection: Yes

Type: Li-Ion,Lithium Battery

Voltage: 12V

Voltage at end of Discharge: 10V

Weight: 10.48kg,23.1Ibs
